Accessories
Impact Extension Bar
Material: CR-MO
| 1/4" CR-MO Impact Extension Bar | |||
|---|---|---|---|

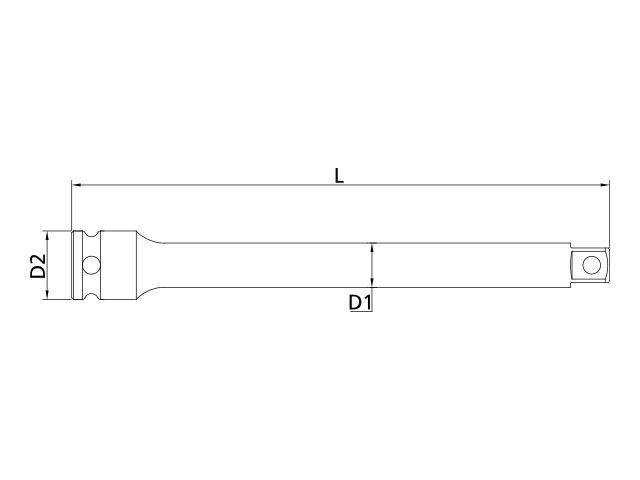

| Size | L | D1 | D2 |
| 2" | 50mm | 8.3 | 13 |
| 3" | 75mm | 8.3 | 13 |
| 4" | 100mm | 8.3 | 13 |
| 6" | 150mm | 8.3 | 13 |
| 10" | 250mm | 8 | 13 |
| 3/8" CR-MO Impact Extension Bar | |||
|---|---|---|---|
| Size | L | D1 | D2 |
| 3" | 75mm | 12.3 | 18 |
| 4" | 100mm | 12.3 | 18 |
| 5" | 125mm | 12.3 | 18 |
| 6" | 150mm | 12.3 | 18 |
| 8" | 200mm | 12.3 | 18 |
| 9" | 225mm | 12.3 | 18 |
| 10" | 250mm | 12.3 | 18 |
| 12" | 300mm | 12.3 | 18 |
| 14" | 355mm | 12 | 18 |
| 15" | 381mm | 12 | 18 |
| 16" | 407mm | 12 | 18 |
| 18" | 457mm | 12 | 18 |
| 20" | 508mm | 12 | 18 |
| 24" | 609mm | 12 | 18 |
| 30" | 762mm | 12 | 18 |
| 36" | 914mm | 12 | 18 |
| 40" | 1016mm | 12 | 18 |
| 1/2" CR-MO Impact Extension Bar | |||
|---|---|---|---|
| Size | L | D1 | D2 |
| 3" | 75mm | 16.5 | 24 |
| 4" | 100mm | 16.5 | 24 |
| 5" | 125mm | 16.5 | 24 |
| 6" | 150mm | 16.5 | 24 |
| 8" | 200mm | 16.5 | 24 |
| 10" | 250mm | 16.5 | 24 |
| 12" | 300mm | 16.5 | 24 |
| 14" | 355mm | 16 | 24 |
| 15" | 381mm | 16 | 24 |
| 16" | 407mm | 16 | 24 |
| 18" | 457mm | 16 | 24 |
| 20" | 508mm | 16 | 24 |
| 24" | 609mm | 16 | 24 |
| 30" | 762mm | 16 | 24 |
| 36" | 914mm | 16 | 24 |
| 40" | 1016mm | 16 | 24 |
